SKU | 28054
US$13,000.00

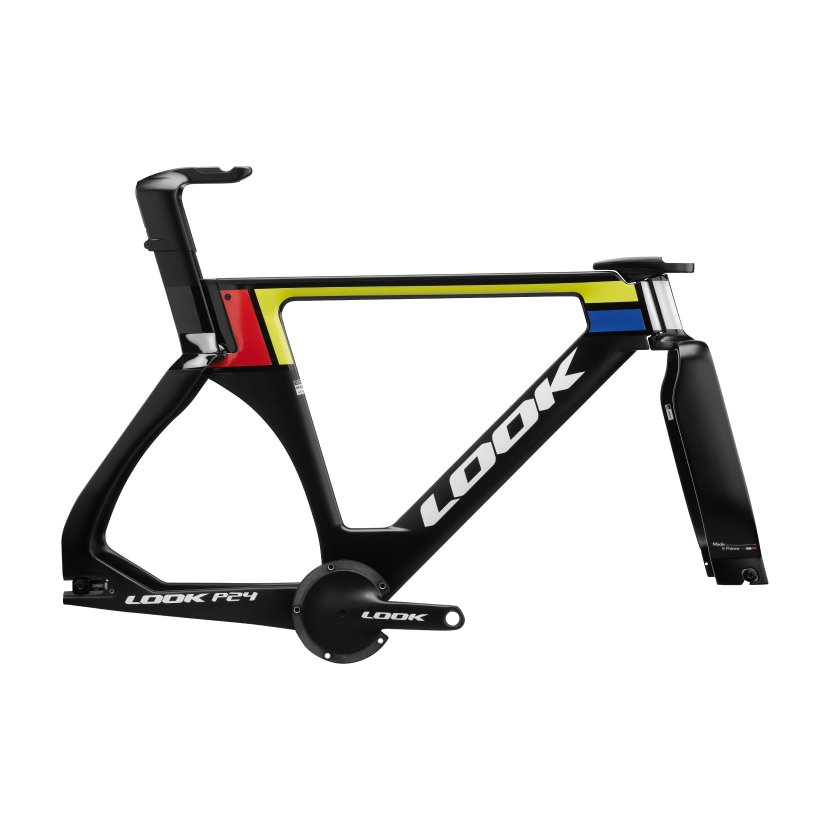

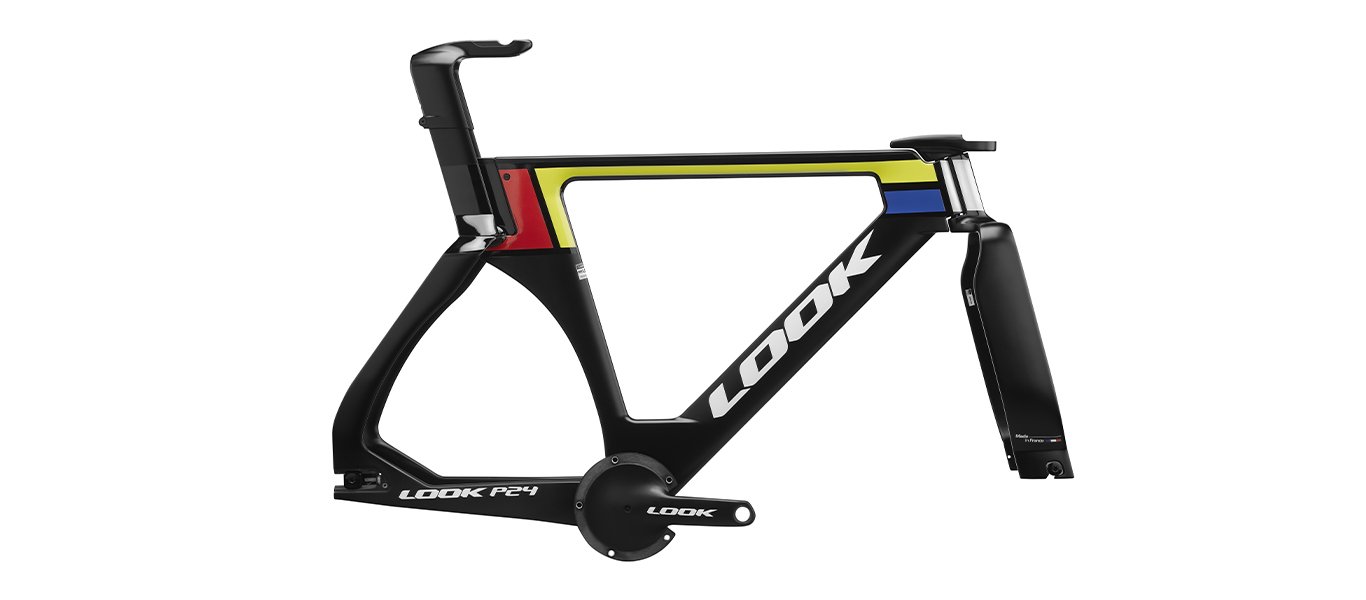

Through the use of modularity and craftmanship. Building the fastest track bike is like building a Formula 1 car. Every section, every part and component play a very important role in the overall performance of the bike. We divided the frame into sections and tested each of them individually, improving every little detail, using 3D printed parts assembled on a metallic skeleton.
When we put the LOOK P24 into a wind tunnel, we saw impressive aero gains compared to both its competitors and the LOOK T20, making it one of the highest performing track bikes in the world. We tested every promising CFD design, using interchangeable 3D printed parts, first with a mannequin then a human, in the process. The result is mind-blowing.
An evolution of what has been before, the LOOK P24 utilizes the complex carbon lay-up of the LOOK T20 to provide the best stiffness values, offering incomparable power transfer on starts, sprints and turns. Using the successful fibers mix of the LOOK T20 (UHM – HR – HM lay-up) as the foundation, the LOOK P24 is a completely new development of frame and parts. Our unrivalled expertise in carbon and state of the art aerodynamic development, come together to create the fastest bike on the track.
The fork and cockpit match the rider aerodynam-ics. Associated with the AIR cockpit, the front wind resistance is drastically reduced.
Perfectly aligned with the rider’s body sections, the frame and the fork of the LOOK P24 are designed to disappear, having a very low impact on the CX while delivering a impressive power transfer and a precise handling of the bike.
The seat stays and the double seat post mast are perfectly aligned with the rider’s air drag, offering minimal interference enabling them to hit the straights and the corners with maximum speed.
| Frame | Very High Modulus Carbon UD Glossy finish |
|---|---|
| Crankset |
LOOK ZED Track (without plates) – Short version : 165 / 167.5 / 170 mm Medium version: 172.5 / 175 / 177.5 mm |
| Bottom bracket | BB 65 (LOOK Specific) |
| Seatpost | Air Seatpost |
| Stem | Air Stem – available in 65mm / 75mm / 85mm / 95mm / 105mm / 115mm |
| Handlebar | Not included - (LOOK P24 specific – complete with Look Air bar poursuite / Look Air bar madisson / Look Air bar Vitesse) |
| XS | S | M | L | |
|---|---|---|---|---|
| Stack | 466 | 483 | 500 | 517 |
| Reach | 412.6 | 438.6 | 464.6 | 490.6 |
| Reach center handlebar mount (65mm stem) | 469.6 | 495.6 | 521.6 | 547.6 |
| Min stack center handlebar mount | 74.7 | 74.7 | 74.7 | 74.7 |
| I - Head tube angle (°) | 74.7 | 74.7 | 74.7 | 74.7 |
| J - Seat tube angle (°) | 74.5 | 74.5 | 74.5 | 74.5 |
| A - Seat tube length | 483.3 | 501 | 518.7 | 536.4 |
| B - Top tube length | 541.9 | 572.6 | 603.3 | 634 |
| C - Front Center | 590.5 | 621 | 651.6 | |
| D - Trail | 61.4 | 61.4 | 61.4 | 61.4 |
| F - Fork offset | 30 | 30 | 30 | 30 |
| G - Chain stays length | 399 | 399 | 399 | 399 |
| K - Head tube length | 48.9 | 66.5 | 84.1 | 101.7 |
| L - Fork length | 390.6 | 390.6 | 390.6 | 390.6 |
| BB Drop | 50 | 50 | 50 | 50 |
| Standover | 482.5 | 499.5 | 516.5 | 533.5 |
| Stack (mm) | 466 |
|---|---|
| Reach (mm) | 412.6 |
| Reach center handlebar mount (65mm stem) | 469.6 |
| Min stack center handlebar mount | 74.7 |
| I - Head tube angle (°) | 74.7 |
| J - Seat tube angle (°) | 74.5 |
| A - Seat tube length (mm) | 483.3 |
| B - Top tube length (mm) | 541.9 |
| C - Front Center (mm) | |
| D - Trail (mm) | 61.4 |
| F - Fork offset (mm) | 30 |
| G - Chain stays length (mm) | 399 |
| K - Head tube length (mm) | 48.9 |
| L - Fork length (mm) | 390.6 |
| BB Drop (mm) | 50 |
| Standover (mm) | 482.5 |
| Stack (mm) | 483 |
|---|---|
| Reach (mm) | 438.6 |
| Reach center handlebar mount (65mm stem) | 495.6 |
| Min stack center handlebar mount | 74.7 |
| I - Head tube angle (°) | 74.7 |
| J - Seat tube angle (°) | 74.5 |
| A - Seat tube length (mm) | 501 |
| B - Top tube length (mm) | 572.6 |
| C - Front Center (mm) | 590.5 |
| D - Trail (mm) | 61.4 |
| F - Fork offset (mm) | 30 |
| G - Chain stays length (mm) | 399 |
| K - Head tube length (mm) | 66.5 |
| L - Fork length (mm) | 390.6 |
| BB Drop (mm) | 50 |
| Standover (mm) | 499.5 |
| Stack (mm) | 500 |
|---|---|
| Reach (mm) | 464.6 |
| Reach center handlebar mount (65mm stem) | 521.6 |
| Min stack center handlebar mount | 74.7 |
| I - Head tube angle (°) | 74.7 |
| J - Seat tube angle (°) | 74.5 |
| A - Seat tube length (mm) | 518.7 |
| B - Top tube length (mm) | 603.3 |
| C - Front Center (mm) | 621 |
| D - Trail (mm) | 61.4 |
| F - Fork offset (mm) | 30 |
| G - Chain stays length (mm) | 399 |
| K - Head tube length (mm) | 84.1 |
| L - Fork length (mm) | 390.6 |
| BB Drop (mm) | 50 |
| Standover (mm) | 516.5 |
| Stack (mm) | 517 |
|---|---|
| Reach (mm) | 490.6 |
| Reach center handlebar mount (65mm stem) | 547.6 |
| Min stack center handlebar mount | 74.7 |
| I - Head tube angle (°) | 74.7 |
| J - Seat tube angle (°) | 74.5 |
| A - Seat tube length (mm) | 536.4 |
| B - Top tube length (mm) | 634 |
| C - Front Center (mm) | 651.6 |
| D - Trail (mm) | 61.4 |
| F - Fork offset (mm) | 30 |
| G - Chain stays length (mm) | 399 |
| K - Head tube length (mm) | 101.7 |
| L - Fork length (mm) | 390.6 |
| BB Drop (mm) | 50 |
| Standover (mm) | 533.5 |
Please note this is an approximate size guide. Please contact your dealer for a more precise sizing information.
| Tailles du vélo | Tailles du cycliste | |
|---|---|---|
| XS | < 166 | |
| S | 164 - 175 | |
| M | 173 - 184 | |
| L | > 182 |
| XS | < 166 |
|---|---|
| S | 164 - 175 |
| M | 173 - 184 |
| L | > 182 |
