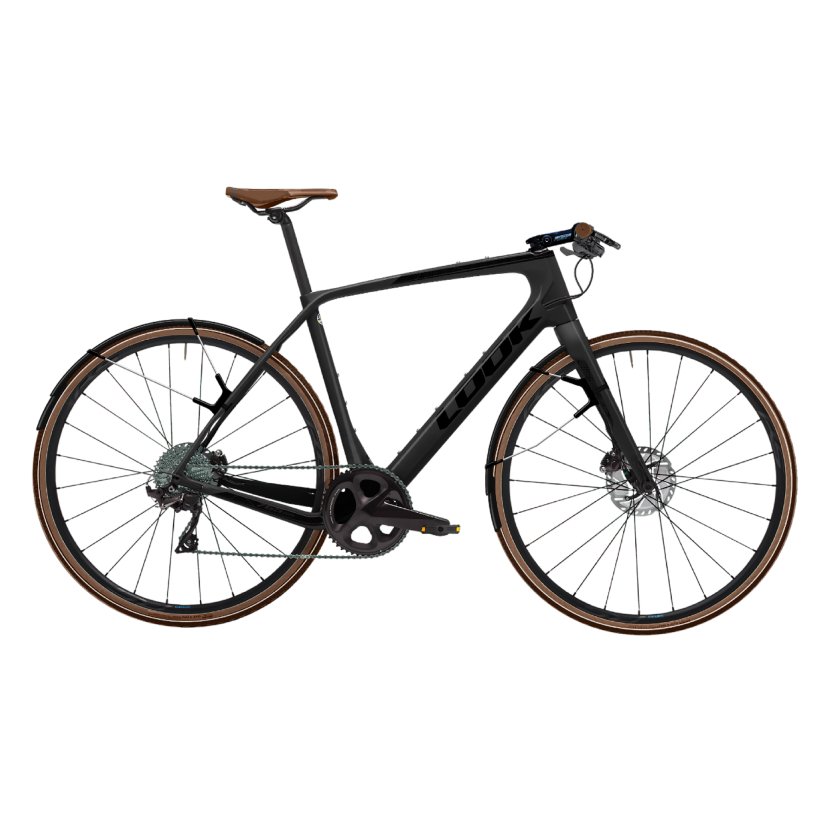

765 GOTHAM

SKU | 25258

US$3,500.00

Buy in shop

With the 765 Gotham, you choose urban mobility of a new kind. Featuring a full carbon frame, this is an ultralight bike to make light of your daily commutes. The 11-speed Shimano gearing offers smooth shifting while the hydraulic disc brakes are responsive in all situations. Components are also selected with care: the Selle Italia Novus Boost saddle is teamed with an FSA Comet flat handlebar and Hutchinson Haussmann 40mm tires for an exceptionnally comfortable riding experience. Finally, the mudguards and LOOK Geo Trekking Vision pedals ensure a safe ride no matter the conditions.
why-you-ll-love-it-765-gotham

Why you'll love it ?

A bike designed for efficient commuting

  • Lightweight, highly-reactive full carbon frame and fork
  • Carefully chosen components to ensure comfort and safety on all rides
  • High-end gearing for smooth shifting and a wide range of use
All you need to know about è-(

Technical specifications

Geometry

geometry-765-gotham

todo_change_me

XS S M L XL
Stack 530 554 578 602 626
Reach 355 365 375 385 395
I - Head tube (°) 70.3 70.3 70.3 70.3 70.3
J - Seat tube (°) 74 74 73 73 73
A - Seat tube 470 490 510 535 560
B - Top Tube horizontal 507 524 552 569 586.5
C - Front Center 577 595.5 614 632.5 651
D - Trail 70.5 70.5 70.5 70.5 70.5
F - Fork offset 50 50 50 50 50
G - Chainstays 420 420 420 420 420
K - Head tube 111.5 137 162.5 188 213.5
L - Fork 395 395 395 395 395
HAV 70 70 70 70 70
Standover 740 764 788 812 836
Stack (mm) 530
Reach (mm) 355
I - Head tube (°) 70.3
J - Seat tube (°) 74
A - Seat tube (mm) 470
B - Top Tube horizontal (mm) 507
C - Front Center (mm) 577
D - Trail (mm) 70.5
F - Fork offset (mm) 50
G - Chainstays (mm) 420
K - Head tube (mm) 111.5
L - Fork (mm) 395
HAV (mm) 70
Standover (mm) 740
Stack (mm) 554
Reach (mm) 365
I - Head tube (°) 70.3
J - Seat tube (°) 74
A - Seat tube (mm) 490
B - Top Tube horizontal (mm) 524
C - Front Center (mm) 595.5
D - Trail (mm) 70.5
F - Fork offset (mm) 50
G - Chainstays (mm) 420
K - Head tube (mm) 137
L - Fork (mm) 395
HAV (mm) 70
Standover (mm) 764
Stack (mm) 578
Reach (mm) 375
I - Head tube (°) 70.3
J - Seat tube (°) 73
A - Seat tube (mm) 510
B - Top Tube horizontal (mm) 552
C - Front Center (mm) 614
D - Trail (mm) 70.5
F - Fork offset (mm) 50
G - Chainstays (mm) 420
K - Head tube (mm) 162.5
L - Fork (mm) 395
HAV (mm) 70
Standover (mm) 788
Stack (mm) 602
Reach (mm) 385
I - Head tube (°) 70.3
J - Seat tube (°) 73
A - Seat tube (mm) 535
B - Top Tube horizontal (mm) 569
C - Front Center (mm) 632.5
D - Trail (mm) 70.5
F - Fork offset (mm) 50
G - Chainstays (mm) 420
K - Head tube (mm) 188
L - Fork (mm) 395
HAV (mm) 70
Standover (mm) 812
Stack (mm) 626
Reach (mm) 395
I - Head tube (°) 70.3
J - Seat tube (°) 73
A - Seat tube (mm) 560
B - Top Tube horizontal (mm) 586.5
C - Front Center (mm) 651
D - Trail (mm) 70.5
F - Fork offset (mm) 50
G - Chainstays (mm) 420
K - Head tube (mm) 213.5
L - Fork (mm) 395
HAV (mm) 70
Standover (mm) 836

Your frame has a lifetime warranty
